Alpego - Flailmower TrisaR TR36

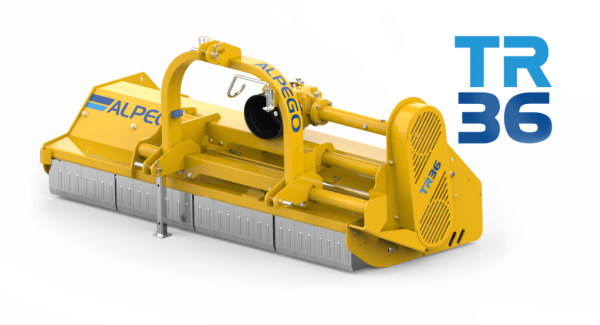

Flailmower TrisaR TR36
The professional flail mower Mod TrisaR TR36 is the ideal implement for all requirements. Thanks to its patented SSA system it allows working with the best results and the highest degree of safety both on grass and on woody material. Ideal for tractors of up to 100 HP, it is available in 6 different working widths ( 1.6 , 1.8, 2 , 2.2, 2.4 and 2.8m.).

Equipment


Bigger flail rotor
Mechanic or hydraulic lateral movement (to be chosen – NOT PROVIDED AS STANDARD)
Universal joint with protection
Rear roller Ø160 with protected bearings
Fixed counter-blade
Second Counter-blade
Pto 540 rpm
Also available with 1000 rpm Pto (TR36-280M only with 1000 rpm Pto)
3-point hitch
Cat. 1 and 2
Free wheel in oil bath positioned inside the main gearbox
Side plates
EC protections

Features

Mulching chamber SSA
Mulching chamber “Super Shredder Alpego” (patent) designed to allow for an adjustable mulching volume; by changing th eposition of the rear gate it is possible to obtain two different types of work.

a) Grass mowing: the rear gate remains shut, and the mulched product is not thrown out of the machine (cutting of grass, bushes, thick vegetation…)

b) Turbo-mulcher wood-mulching function: with the rear gate kept low the wo-oden residues are finelymulched: they remain within the chamber until they are mulched as finely as possible (vines, underbrush, prunings, wood…)

Double frame TR36 (double skin)
The mulching chamber, consisting of a double metal frame increases the resistance and the integrity of the machine, while protecting the rear gate against damages.

Self-cleaning rear roller
The self-cleaning rear roller, is characterized by an automatic self-cleaning feautre thanks to its position very close to the rotor.

High tensile steel frame
High tensile steel frame

 Second Counter-blade

Lateral movement TR36


Mod                           HP         mm       mm     mm      Kg
Trisar TR36-160       45-100   1600      1750   160      695
Trisar TR36-180       50-100   1800      1950   160      740
Trisar TR36-200       55-100   2000      2150   160      780
Trisar TR36-220       60-100   2200      2350   160      825
Trisar TR36-240       65-100   2400      2550   160      865
Trisar TR36-280M   70-100   2800       2950  160      965
