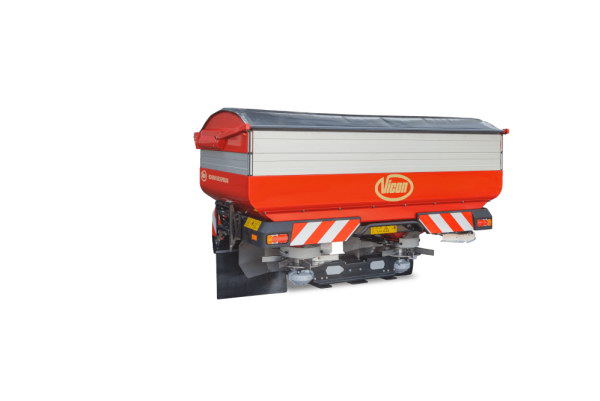

Vicon - RotaFlow RO-EDW GEOSPREAD

A Perfect Spreading Result!

With the Vicon RO-EDW GEOSPREAD you will get a perfect spreading result! The GEOSPREAD system does section control with sections of only 1 metre. With a maximum of 54 sections and the possibility to switch sections over the middle, unnecessary overlap is set to an absolute minimum. The 4 load cells and reference sensor on the RO-EDW GEOSPREAD are important features as with section control accurate weighing is essential. The total benefit of GEOSPREAD combined with speed related spreading and GEOPOINT headland management can be up to 15%. This can be achieved by saving fertiliser and better yields, because of no unnecessary overlap. This Vicon RO-EDW GEOSPREAD spreader is ISOBUS compatible and AEF certified. You can operate the spreader in combination with the IsoMatch Tellus PRO, IsoMatch Tellus GO or any other ISOBUS compatible tractor terminal.

The Advantages:

RotaFlow spreading system
Fully automatic weighing system with unique reference sensor
Unique GEOSPREAD system with two electric actuators
Section control with 1 metre sections up to a maximum of 54 (depending on the terminal functionality)
ISOBUS 11783 compatible for easy plug and play
Possible in combination with IsoMatch GEOCONTROL

Technical Specifications

GEOSPREAD (narrow)

EDW 1500

1500l hopper capacity
110cm filling height
275cm width
269cm filing width
665kg empty weight
12-54m spreading width
10-320kg/min output

EDW 2150

2150l hopper capacity
129cm filling height
275cm width
269cm filing width
695kg empty weight
12-54m spreading width
10-320kg/min output

EDW 2800

2800l hopper capacity
148cm filling height
275cm width
269cm filing width
725kg empty weight
12-54m spreading width
10-320kg/min output

EDW 3450

3450l hopper capacity
167cm filling height
275cm width
269cm filing width
755kg empty weight
12-54m spreading width
10-320kg/min output

GEOSPREAD (wide)

EDW 1875

1875l hopper capacity
120cm filling height
290cm width
284cm filing width
705kg empty weight
12-54m spreading width
10-320kg/min output

EDW 2550

2550l hopper capacity
139cm filling height
290cm width
284cm filing width
735kg empty weight
12-54m spreading width
10-320kg/min output

EDW 3225

3225l hopper capacity
158cm filling height
290cm width
284cm filing width
765kg empty weight
12-54m spreading width
10-320kg/min output

EDW 3900

3990l hopper capacity
177cm filling height
290cm width
284cm filing width
795kg empty weight
12-54m spreading width
10-320kg/min output
