VICON EXTRA 687T - EFFICIENT BUTTERFLY MOWER COMBINATION

The new Vicon EXTRA 687T butterfly combination has been designed with ease of operation in mind. In fact it is an uncomplicated butterfly combination purpose built to lower operating costs in terms of power and fuel consumptions, with power requirements starting at only 150hp.

It offers 8.75m working width at only 2.130kg. Equipped with 2 x 3.18m Vicon mowing units, both fitted with 8 counter rotating triangular discs and nylon tines, the EXTRA 687T is geared for productive work days. EXTRA 687T comes standard with an integrated parking foot for easy and convenient parking, requiring a minimum of space during winter storage

ADVANTAGES
8.75m working width
Low weight of only 2.130kg, power requirements starting from 150hp.
Integrated vertical parking stand
Hydraulic adjustment of ground pressure (optional)
NonStop BreakAway
Centre suspended mowing units
Counter-rotating triangular discs.
Efficient nylon tine conditioner.
600 or 900rpm conditioner speed.

MODEL

EXTRA 687T
Working Width 8.75m
No of Discs 2x 8 triangular discs
Conditioner Nylon tine conditioner

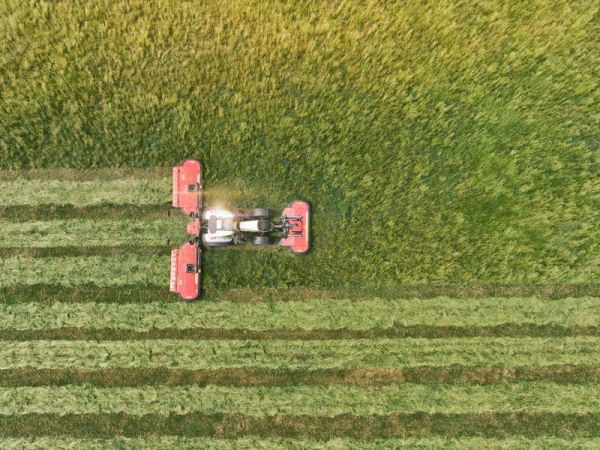

VICON EXTRA 690T BX - TRIPLE MOWER COMBINATION
Vicon's top-of-the-line mower conditioner triple combination offers 9m working width. It consists of an EXTRA 632FT or 635FT front-mounted mower conditioner with 3.18/3.50m working width and two rear-mounted 3.18m mower conditioner units. There is no need for a special reverse drive tractor, as the EXTRA 690T fits perfectly on a normal tractor with front and rear linkage.

ADVANTAGES:
9.00m working width
Swath Belt.
ISOBUS control.
4 different output, 3 single swaths, 100% wide-spreading, 3 swaths into 1 or two by two.
Pendulum suspension with 4 heavy-duty springs.
Available with swath belt and FlipOver wide-spreading.

MODEL

EXTRA 690T ISOBUS
Working Width 9.00m
No. of Discs 2 x 8 triangular discs
Conditioner SemiSwing
Power Requirement 160/220 kW/hp

VICON EXTRA 7100T VARIO - 7100R VARIO - EFFICIENT BUTTERFLY MOWER COMBINATION

The all-new EXTRA 7100T Vario delivers an outstanding performance with its´ completely new suspension concept, 10.20m working width and hydraulic adjustment of working width and overlap. EXTRA 7100T is fitted with the new Vicon suspension concept called QuattroLink. The mowing unit is pulled by four suspension arms fitted onto a fixed carrying arm that allows the mowing unit to float independently over the field, adjusting highly accurately and instantly to any changes in ground contours.

ADVANTAGES:

Up to 10.20m working width.
New innovative QuattroLink racecar suspension concept.
Flexible suspension – 700mm movements, 400mm upwards and 300mm downwards.
NonStop BreakAway protection across the full working width.
Hydraulic adjustment of overlap on the go.
Ground pressure remains the same, even when the overlap is changed.
Minimum 500mm ground clearance during headland turns.
Dual-adjustment of conditioner hood - both front and rear end can be adjusted.
Integrated parking feet for vertical storage.
Counter-rotating triangular discs.

MODELS

EXTRA 7100T Vario
Working Width 9.80-10.20m
Number of Discs 2 x 10 discs
Conditioner SemiSwing Steel Tine Conditioner

EXTRA 7100R Vario
Working Width 9.80-10.20m
Number of Discs 2 x 10 discs
Conditioner Roller Conditioner

VICON EXTRA 7100T VARIO BX - 7100R VARIO BX
The Vicon BX is primed to maximise working capacity and utilise the full capacity of the EXTRA 7100 without compromising on quality of work. Vicon BX automatically does the job of adjusting belt speed to working width, for the same uniform swath width, regardless of position of mowing units. In combination with GEOMOW, this means maximum working capacity, excellent operator comfort and an even, uniform swath formation.

ADVANTAGES:
Automatic belt speed adjustment
Adjustable belt height
Belt boost for headland operation
Autostop function for minimised fuel consumption
Versatile 4-in-1 solution

MODELS

7100T Vario BX
Working Width 9.80-10.20m
Number of Discs 2 x 10 discs
Conditioner SemiSwing Steel tine Conditioner

7100R Vario BX
Working Width 9.80-10.20,
Number of Discs 2 x 10 discs
Conditioner Roller Conditioner
