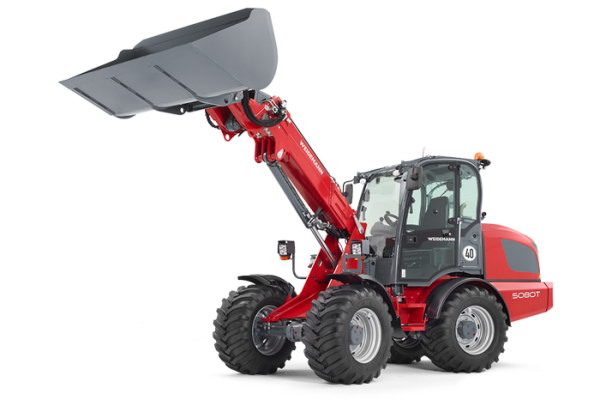

Weidemann - Wheel Loader 5080T

Telescopic wheel loader - for all those who want to go up

A telescopic wheel loader is particularly ideal for those who need more lift height. In addition to functionality, a high level of working comfort and excellent safety standards, these machines have a telescopic arm that provides considerably greater lift height and coverage in comparison to normal wheel loaders with load arms. The basic virtues, such as manoeuvrability, stability and lift capacity, that characterise the articulated wheel loader, also apply to a telescopic wheel loader - which makes them so successful.

The Weidemann benefits at a glance

Weidemann articulated pendulum joint

The backbone of the Weidemann design. The legendary articulated pendulum joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction. In addition, the machine has unrivalled manoeuvrability.

High quality powder coating

Quality creates added value. The powder coating is a key feature of the Weidemann quality standard. In contrast to the conventional wet painting, it greatly increases the service life and is more efficient and also environmentally friendly in the process.

High shear forces from planetary axle

The drive via the planetary axle increases the torque on the wheel and thereby improves the pushing power. Due to the optimal ratio between the pushing power and machine capacity, you work flexibly and economically at the same time.

100% differential lock

The connectible 100% differential lock provides maximum traction and pushing power if necessary. It also keeps the tire wear low (switched off during normal operation). This increases the efficiency of your machine!

Sturdy telescopic arm

The telescopic arm is built to be sturdy and stable. The parallel motion takes place hydraulically. All important hydraulic lines are inside and are protected against external influences. The telescopic arm for Weidemann wheel loaders combines the advantages of an articulated machine with those of a telehandler. High overhead loading heights are therefore not a problem.

Rollback angle limitation

A rollback angle limitation is installed as a standard on all Weidemann telescopic wheel loaders. This is located on the Weidemann support and limits the rollback angle. The retainer prevents rolling in too far with an extended or retracted telescopic arm. In this way, for example, the contents of the bucket cannot fall onto the driver's cab.

Stainless steel steering stops

At a full steering stop, the front and rear carriage of the machine touch. With Weidemann, this area is particularly well-protected by the stainless steel steering stops and the machine's paint is not damaged. This provides for value preservation!

Large selection of attachment tools

Use your machine as a multi-tool - you have a wide selection of attachments available for your Weidemann. Here you can find which attachment in what size is right for your machine »

Large selection of tyres
The optimal tyres for every subgrade: you have a wide selection of different tyres available for your Weidemann.

Your driver's cab

Comfortable cabin

The spacious cabin meets the current European machine directive (2006/42/EC) according to ROPS and FOPS protection and offers a great deal of headroom and freedom of movement. Thanks to the complete glazing, the operator has an excellent overview of the attachments and the entire working area.

Quick and easy tool change

Thanks to the hydraulic quickhitch system, attachments can be easily and conveniently exchanged. In this way, your machine is again ready for application at once. This increases productivity and profitability. The exchange of the attachment takes place through 2-hand operation, which makes an unwanted change impossible - safety always comes first at Weidemann!

Optimum ease of servicing

Tiltable cab

Only at Weidemann: The tiltable cabin allows for easy access to the engine, hydraulic system and electrical system. Maintenance and service made extremely easy!

Easy-to-open engine hood

The engine hood can be opened upward with just one handle for regular service and maintenance work. The hydraulic oil tank, air cleaner, engine oil fill opening, oil-level dipstick and coolant are therefore quickly and easily accessible.

Easily accessible lubrication service points

Regularly greasing all lubrication points of the machine is crucial for the proper and effective maintenance and therefore value retention of the machine. In order to save time and facilitate the work, the lubrication service points are always in an easily accessible position at Weidemann. Optionally, a central lubrication system is available that takes over the lubrication for you.

Short hydraulic hose lengths

Weidemann machines have short hydraulic hose lengths - the hoses are split in several places. If a hydraulic hose needs to be exchanged, the entire hose in the hydraulic circuit does not need to be exchanged, but rather just the affected part. This speeds up work enormously and saves money.

A workplace that motivates

Adjustable steering wheel

The steering wheel can be individually adjusted according to the operator's request. This ensures that every operator can work with the machine ergonomically and fatigue-free.

Ergonomic joystick - everything in one hand

Perfect control of the machine and functions via a joystick of the latest generation. The innovative joystick with ergonomically arranged, illuminated touch controls creates user friendliness and multi-functionality.

Hydraulic oil volume adjustment via a jog dial

If necessary, the "jog dial" control element can be used to manually set the flow rate of the hydraulic oil. This is advantageous if the machine is operating a hydraulic attachment that does not require the full hydraulic performance of the machine. The operator can therefore work precisely and in a resource-saving manner with a machine and attachment.

Good all-round visibility - ergonomic working area

Plenty of legroom, clearly arranged instrument clusters, a comfortable operator’s seat and an optimal view of the attachment. A working area that motivates and fully supports the operator.

Pleasant working environment

The working environment in the cabin is excellent, thanks to an efficiently working heater and ventilation system with a fan, fresh air filter and well-placed air nozzles. For particularly hot outdoor temperatures, we recommend the air-conditioning system option.

Rooftop air-conditioning system

The optionally available rooftop air-conditioning system provides a pleasant working climate inside the cabin when the outside temperatures are high. In addition, it offers a high airflow rating (cfm) and convinces with an optimised cooling performance. The operator's control for the control system and the air nozzles are located inside the roof area of the cab.

Vibration-damped working area

Vibrations and impacts are absorbed by the machine. Your body is very well protected and you also work for a longer period of time more relaxed and fatigue-free - and therefore are more focused.
