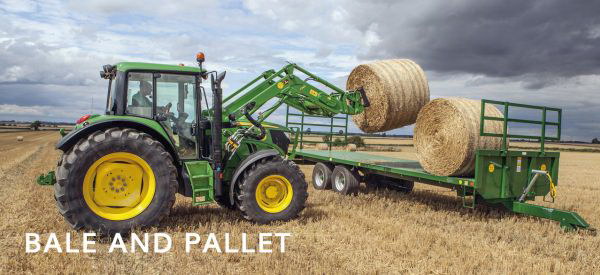

Bailey - Bale and Pallet Trailer

Bale and Pallet trailers are mounted on 8 or 10 mm RHS chassis with heavy-duty axles on tandem springs. All models are fitted with 4 mm flat floor, or chequer plate floor, with 60 x 40 RHS floor runners at 12” centres. Bale trailers have heavy-duty RHS side rails with 2’ high headboard for safe and secure loading of pallets, bags, boxes etc.

Standard features

Lights to RTA, independent hydraulic brakes, parking brakes, strap points, 40 mm EN8 towing eye, skid & skid carrier, hydraulic hose carrier, front steps, front and rear ladders, LED lights, LED beacon, chequer plate floor*, number plate holder.

Hydraulic working platform to aid filling of potato boxes; box pusher and rollover sheet for safe transportation of load. To get Box Pushers to work correctly you need a trailer 1’ longer than total length of boxes.

Our Veg Trailer is designed for collecting brassicas from the field and transporting them to the store.

Total body length: approx 29’ (8850 mm). Overall width: 8’2” (2500 mm). The Curtain Sider features a choice of large tail-lift, ‘barn door’ or other system to suit your requirements.

Stock Box option

Stock Boxes fit any of our flat trailers. Built to your required length, these boxes come with the option of sheep decks, internal gates and loading ramps.

Loading gates are spring assisted for ease of use. The box is easily secured to the trailer by 4 adjustable brackets, which provide quick fixing and removal. All livestock trailers are supplied with tandem springs as standard - POA.

Aluminium floats
Standard models with section decks and moveable doors.
